Product Details

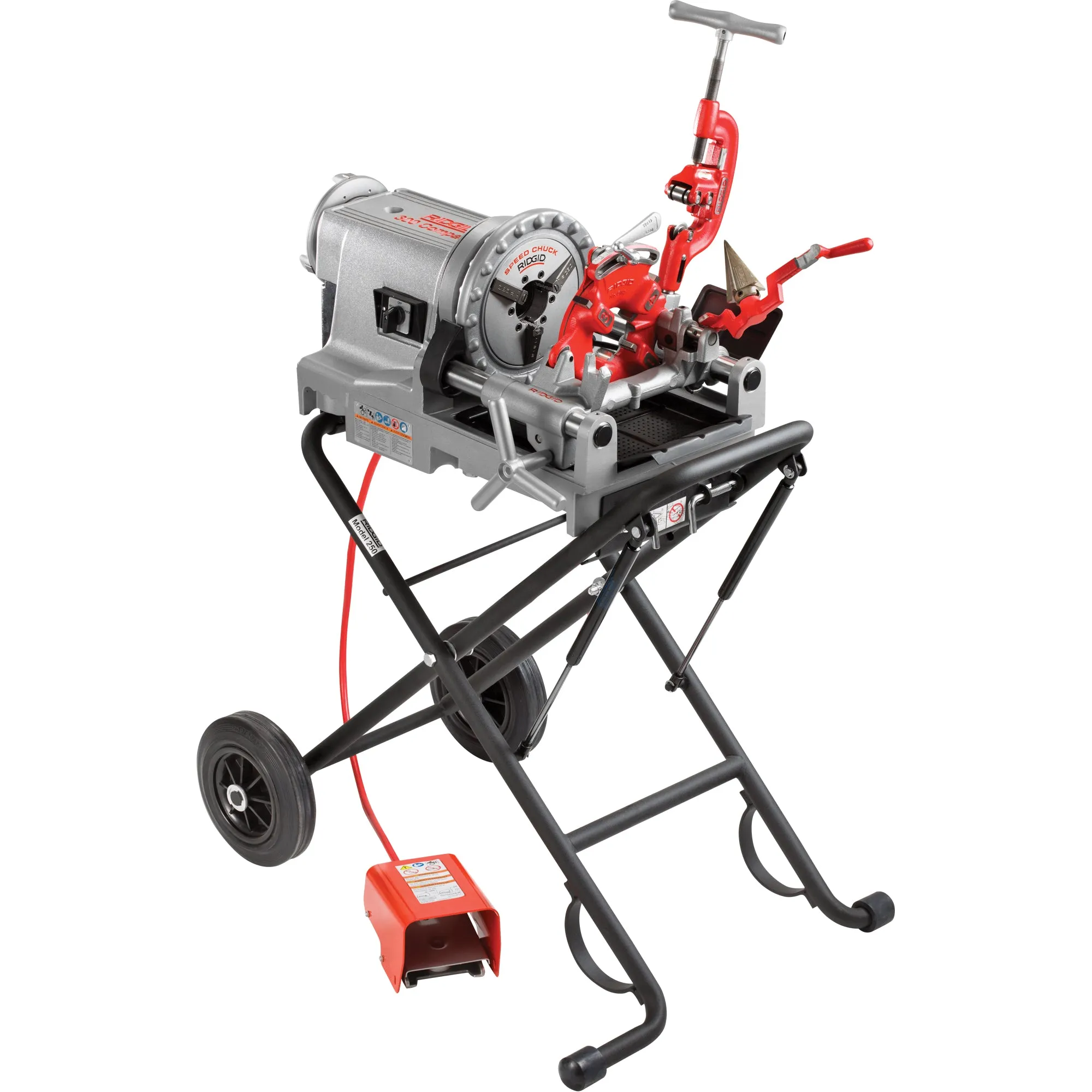

＋This lightweight threading machine is designed for easy transportation with an integral oiling system and reservoir seal to prevent spills during transport. With a powerful 1/2 HP motor you will rely on this threading machine to operate on the field jobs.
Features- Heavy-duty proven performance.
- Lightweight, portable design.
- Self-contained oil system with adjustable flow control.
- Versatility for threading and grooving.
- Quiet operation.
- CSA Approved
- Approved to UL Standards (NRTLC)
| Pipe Capacity | 1/8" - 2" (3 mm - 50 mm) |
| Bolt Capacity | 1/4" - 2" (6 mm - 50 mm) |
| Motor | 1/2 HP, 115V Universal 25-60 Hz |
| Motor Control | Heavy-duty rotary FOR/OFF/REV with integral foot switch |
| Spindle Speed | 38 RPM (52 or 57 RPM available) |
| Chuck | Hammer-type with replaceable, rocker-action jaw inserts |
| Oiling System | Through-the-head, with integral oil reservoir. Self-priming, constant-flow, gerotor pump |
| Cutter | Model 360, roll-type cut-off, self-centering, full-floating |
| Reamer | Model 344, 1/8" - 2", five flute cone, right hand only |
